首要手艺参数：Main Technical Parameters

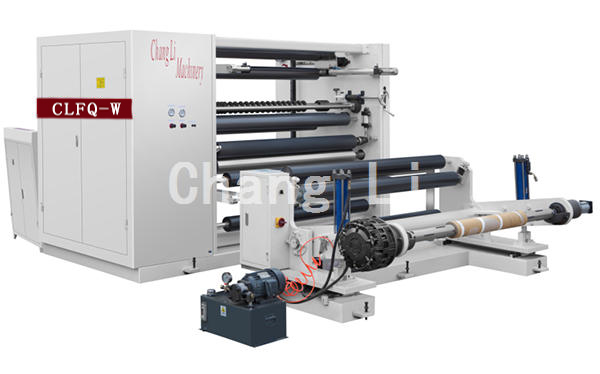

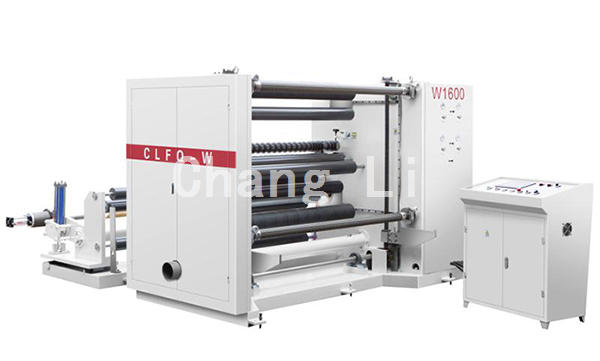

机型 Model	CLFQ-W1300	CLFQ-W1600
质料宽度 MAX.Width of raw material	1300mm	1600mm
放卷直径 Max.parent Web Diameter	Φ1200mm	Φ1200mm
收卷直径 Max.Rewinding Diameter	Φ1000mm	Φ1000mm
机器速率 Max.Machine Speed	10-300m/min	10-300m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	19KW	23KW
分量 Machine Weight	4300kg	4800kg
形状尺寸 Overall Dimensions	2700×2900×1800mm	3000×2900×1800mm
分切宽度 Min.Slitting Width	50mm

可决定物质需求 高端定制传奇装备。

🐠Can be made according to the product requires special equipment.

产品表明好用产值该设备同用于各种专业板料的模切，如30g/m2-300g/m2头层皮纸、白彩色卡纸、淋膜纸、铝箔纸、PVC塑、锡纸等板料的模切、复卷等。机器及标志性1. 该选果机认同异步交流伺服电机机械设备(矢量图机械设备)有节制、主动的锥度弹性，之间卷取体例。设备认同变頻控速，始终如一加快推进两类衡行驶。2. 及时计米、报警灯的功效。收卷包容A、B气胀轴平面布置，卸装使用友盒。3. 放卷进行光电科技主动性纠偏纠错风险管理体系，使不规律个人信息能寻常分切机。4. 圆刀纵切废边拒绝释放零件。5. 液压式被动送料，配气胀轴。6.导轨式拒绝排料零件。

product manual

Scope of application

𒊎This machine is suitable for the slitting of various super-large coils, such as slitting and rewinding of 30g/m2-300g/m2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, tin foil and other coils.

Performance and characteristics

🧸1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension and center winding method. The main engine adopts frequency conversion speed regulation to maintain balanced operation during acceleration.

💛2. Automatic metering and alarm function. The winding adopts the A and B air expansion shaft structure, and the unloading operation is convenient.

✤3. Unwinding adopts photoelectric automatic correction correction system to make irregular materials cut normally.

ᩚᩚᩚᩚᩚᩚ⁤⁤⁤⁤ᩚ⁤⁤⁤⁤ᩚ⁤⁤⁤⁤ᩚ𒀱ᩚᩚᩚ4. The circular knife cuts the waste side automatic discharge device.

🔯5. Hydraulic automatic feeding, with air expansion shaft.

6. Rail type automatic cutting device.
