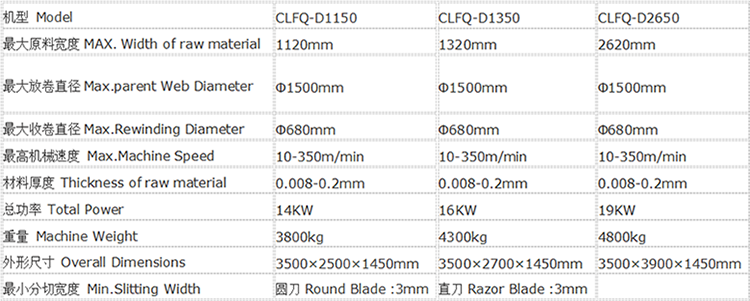

首先手工艺参数设置Main Technical Parameters：

可依据物质恳请 特殊定制大小紫装。

共用规模性：外型卷取复卷分割机合吃于卷简纸、塑膠片、镀铝、PVC、材料塑料膜、医用无纺布、熔喷布、隔绝知料等礼品盒知料的分条复卷是对知料关闭藐小产品规格分割的壮志配备。

器能及苏州特色 ：1.放卷被动高周波波纠偏、包容无轴手动液压式高下料，左右差距調理均由手动液压式达到，磁粉被动支撑力规范。2.收卷由几台矢量图机械驱动安装与主机设备联动性控制正中间卷取与本身实战混用，双轴穿插在收卷，仍会咬口。3.主有限公司源齿轮传动由交流调频控制，交流调频有限公司驱程，加提高不便快速。4..并配有预置自主计米，较真卷径，告警欠费等保健作用。5.容忍圆刀直刀纵切，分切机表盘环境整洁，废边及时清除。6.部件由PLC摸屏组排程序界面自主涨力吃妻上瘾。

Scope of applicationThe surface coiling and rewinding slitting machine is suitable for the stripping and rewinding of packaging materials such as web, plastic sheet, aluminum foil, PVC, Non-woven fabric, meltblown fabric ,plastic film and insulating material. It is an ideal equipment for fine-cutting materials.Performance and characteristics1.The unwinding is automatically rectified by ultrasonic wave, and the shaftless hydraulic loading and unloading is adopted. The adjustment of the left and right spacing is completed by hydraulic pressure, and the magnetic powder is automatically controlled by tension.2. The winding is driven by two vector motors and the main engine linkage control center is used for winding and surface contact, and the two-axis cross winding is performed, never biting.3. The main drive is controlled by the inverter, driven by the variable frequency motor, and the acceleration and deceleration is stable and fast.4. There are preset automatic meter counting, calculation of coil diameter, alarm shutdown and other functions.5. Longitudinal cutting with a round knife, the cutting surface is neat, and the waste edge is automatically eliminated.6. The whole machine is controlled by the automatic tension of the PLC touch screen man-machine interface.
