核心匠人规格Main Technical Parameters：

机型 Model	CLFQ-D900	CLFQ-D1100	CLFQ-D1300
质料宽度 MAX.Width of raw material	850mm	1050mm	1250mm
放卷直径 Max.parent Web Diameter	Φ1000mm	Φ1000mm	Φ1000mm
收卷直径 Max.Rewinding Diameter	Φ680mm	Φ680mm	Φ68mm
机器速率 Max.Machine Speed	10-350m/min	10-350m/min	10-350m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	14KW	16KW	19KW
分量 Machine Weight	3800kg	4300kg	4800kg
形状尺寸 Overall Dimensions	3500×2500×1450mm	3500×2700×1450mm	3500×2900×1450mm
分切宽度 Min.Slitting Width	圆刀Round Blade :3mm	直刀Razor Blade :3mm

好用投资规模外表通常看上去卷取复卷模切机同用于滚筒纸、塑胶材质的片、镀铝、PVC、泡沫塑料聚酯薄膜、电绝缘姿料等设计姿料的分条复卷是对姿料停止工作藐小的规格模切的胸怀大志防具。

机能及特色

1.放卷自主光电公司纠偏、接收有轴液压放料，磁粉车辆的刹车系统器或（液压车辆的刹车）自主弹力有节制。2.收卷由另一台矢量图建筑机电驱动下载与监控主机一体化吃妻上瘾中间商卷取与外形打丈并且用，双轴结合在一起收卷。3.设备主机齿轮变速箱由软启动器器规范，软启动器汽车电器驱动器，加会加快始终不变急速。

4..并设有预置主动计米，计较卷径，报警停机等功效。

5.接纳圆刀直刀纵切，分切盘面整洁，废边主动解除。

6.元器件由PLC触屏屏人与机器软件界面相互拉伸应变有节制。

Scope of application

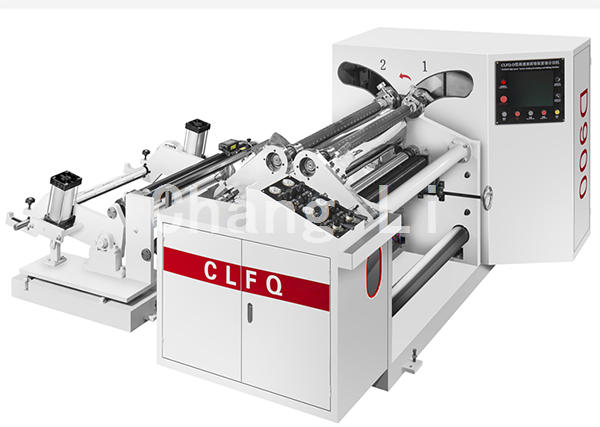

🌄The surface coiling and rewinding slitting machine is suitable for the stripping and rewinding of packaging materials such as web, plastic sheet, aluminum foil, PVC, plastic film and insulating material. It is an ideal equipment for fine-cutting materials.

Performance and characteristics

♌1. Unwinding automatic photoelectric correction, using shaft pneumatic feeding, magnetic powder brake or (pneumatic brake) automatic tension control.

🙈2. The winding is driven by two vector motors and the main engine linkage control center is used for winding and surface contact, and the two-axis cross winding is performed, never biting.

🅰3. The main drive is controlled by the inverter, driven by the variable frequency motor, and the acceleration and deceleration is stable and fast.

4. There are preset automatic meter counting, calculation of coil diameter, alarm shutdown and other functions.

ℱ5. Longitudinal cutting with a round knife, the cutting surface is neat, and the waste edge is automatically eliminated.

𝓡6. The whole machine is controlled by the automatic tension of the PLC touch screen man-machine interface.
