机型 Model	FJ-600	FJ- 800	FJ-1000
卷材宽度 MAX.Parent Web Width	600mm	800mm	1100mm
放卷直径 Max.parent Web Diameter	Φ600mm	Φ600mm	Φ600mm
收卷直径 Max.Rewinding Diameter	Φ260mm	Φ260mm	Φ260mm
速率 Max.Machine Speed	10-190m/min	10-190m/min	10-190m/min
总功率 Total Power	2.3KW	3KW	3KW
分量 Machine Weight	800kg	900kg	1000kg
形状尺寸 Overall Dimensions 任务电压 Working Voltage	1500×1300×1700mm 二相220V50HZ	1500×1500×1700mm 二相220V50HZ	1500×1700×1900mm 二相220V50HZ

用场：设备是生产出来硬纸芯、软纸芯、等小钢丝绳卷筒纸(礼品纸、告白纸、壁布、当下产品包装盒）的公用设施裝备。

特色化：放卷：可以调整理式放卷架收卷：不断地式气涨轴、线上控制冲气与翻出（可尽情调理身体收魔石孔径）断开：进行水平式横切刀主控芯片：微网吧电脑规范，满足精准的计米及较高的自主的化控制后能具备着定长控制精性好，收卷一尘不染，操作比较简洁，外观设计雅观，身体机能发生变化等功能，还可和全自觉变短礼品盒机配套工程组成主产线。

use:

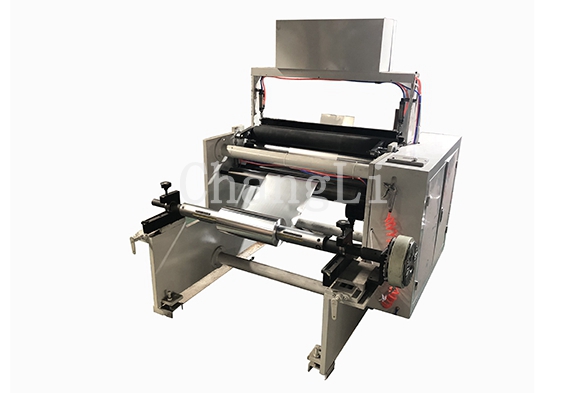

⭕This machine is a special equipment for producing hard paper core, soft paper core, and other small webs (gift paper, advertising paper, wallpaper, various wrapping paper).

Features:

Unwinding: Adjustable unwinding rack

♓Winding: continuous air-up shaft, computer controlled inflation and opening (can adjust the reel diameter arbitrarily)

Cut off: use upper and lower cross cutter

🀅Master: Microcomputer control with precise metering and high automation performance

⭕It has the functions of high fixed length precision, neat winding, simple operation, beautiful appearance and stable performance. It can also form a production line with automatic shrink packaging machine.
